Product Details:
Payment & Shipping Terms:
|
| Product Name: | Upvc Roofing Sheets | Material: | Pvc,calcium And Other Adhesive Material |
|---|---|---|---|
| Color: | White,blue,yellow,red,green,grey Or Customize | Width: | 1130 Mm 1070mm,930 Mm,920mm, 900mm |
| Length: | 2440mm,3050mm,3660mm,4380mm,4800mm 5800mm 11800mm | Weight: | 1.9kg To 5.8kg Per Sqm |
| Thickness: | 1mm To 3 Mm | Surface: | Pvc Or Asa Coated |
| Design: | Corrugated And Trapeziodal | Span: | Long Span 210mm Wave Distance |
| Application: | Poultry Farms Or Factories | ||
| High Light: | Anti Rust Pvc Roof Tiles,Corrugated Pvc Roof Tiles,2440mm Length Pvc Roof Tiles |
||

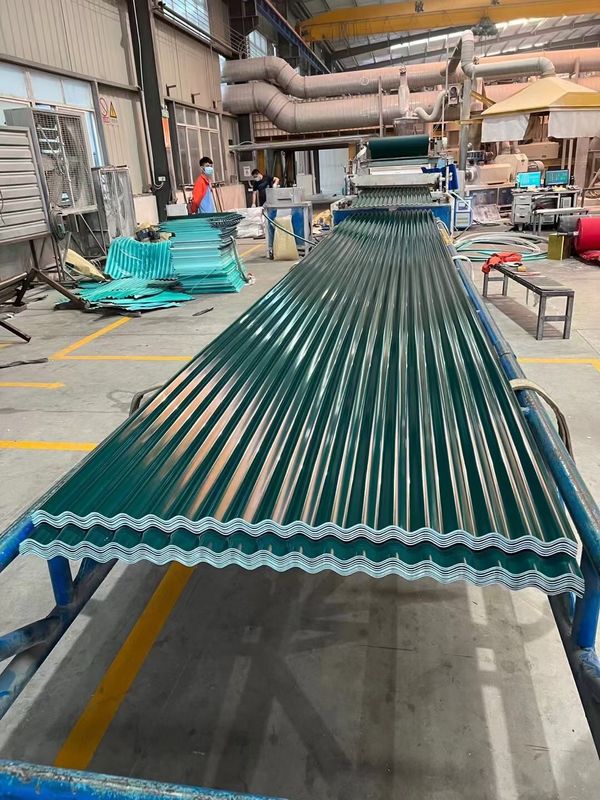

Upvc corrugated plastic roof sheet anti rust pvc roof tiles
Specification:
| Material | PVC ,UPVC,ASA-PVC |
| Width | 920mm,930mm,1070mm,1130mm |
| Thickness | 1.3mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm |
| Length | Max5.8m 20ft; Max11.8m for 40ft |
| Application | house,warehouse,workshop,plant,pavilion |
| Advantages | Anti-Rust,Heat insulation,Soundproof,Fire-proof,Lightweight |
| Quantity | 2.0mm 7200m2/40HQ ; 2.5mm,5800m2/40HQ |
| Color | Customized as your request |
Technical Data
| Heat-Resistance |
(72°c,6h)no deformatio, no viscousness |
High-low temperature change | ±0.11% |
| Cold-Resistance | (-40 °c,6h) no crack in suirface | Fire-protection | Class B1 Retardant Building Materials |
| Bending capability | 25mm | Vicat softening temperature | ≥75°c |
| Flexural load | 800N, no crack | Water absorption rate | ≤0.05% |
| Fleural strength | 72MPa | Nail force | ≥46N |
| Tensile strength | 30MPa | Chemical resistance properties | No reaction : |
1.Length
We could customize the length for you.
The max length is 5800mm for 20'GP and 11800mm for 40'GP.
2.Color and color stable
Here are our common colors.
We could add ASA coating on the surface of roof sheet, this could keep the color unfading for at least 10 years.
It can maintain the stability of the color, even when exposed to harsh UV-rays,moisture,high and low temperatures all year-round.
3.Heat insulation
(1) PVC has a very low heat conduction coefficient of 0.325w/m.k, it is 1/310 of clay tile, 1/5 of cement tile, 1/2000 of 0.5mm thick color steel tile.
(2) The sunlight cannot go through our roof sheet
(3) UPVC is 3 layers of PVC, this is better for heat insulation.
4.Fire proof:
It is difficult to be burned. The fire prevention level is B1.
5.Good water resistant:
Water can't pass through the PVC roof sheet.
We have special styles for area of heavy rain.
6.Corrosion resistant:
It is highly resistant against chemical corrosion of acid,alkali, etc. Our PVC roof sheet is good for chemical factory or acid rain area.
7.Light weight:
It weighs only 3.8kgs per square metre of thickness 2mm. It is also easy to handle and lift, this could be helpful to reduce the construction cost.
8.Impact resistant:
It has excellent load beating performance and could withstand even 150kg load without any damage.
9.Self cleaning performance:
The surface is smooth, it could be washed by the rain.
10.Stable volume:
The expansion coefficient is 4.93 x 10-5(1/0c), the roof sheet does not expand and remains in stable geometric dimension when temperature changes.
11.ECO-friendly&energy efficient:
It is 100% environment friendly and could be recycled.
12.Sound insulation
It can make noise down 30dB than color steel tile
13.Wide application
Our PVC roof sheet can be used in almost all kinds of buildings, such as Industrial, agriculture, commercial house, etc.
Why upvc heat insulation roof tile, Not clay, Not steel, Not cement?
| UPVC | Clay | steel | cement | |
| Light weight | |
|
|
|
| Heat insulation | |
|
|
|
| Anti-corrosion | |
|
|
|
| Anti-earthquake | |
|
