Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pvc Roofing Sheets | Material: | Pvc,calcium And Other Adhesive Material |
|---|---|---|---|
| Color: | White,blue,yellow,red,green,grey Or Customize | Width: | 930mm ,1130 Mm 1070mm,930 Mm,920mm |
| Length: | 2440mm,3.05mm,3.66mm,4.8mm 5.8mm 11.8mm | Weight: | 1.9kg To 5.8kg Per Sqm |
| Thickness: | 1mm To 3 Mm | Surface: | Smooth Or Asa Coated |
| Design: | Corrugated And Trapeziodal | Span: | Long Span |
| High Light: | Pvc Insulated Roofing Sheets,Fire Resistance Roofing Sheets,Long Span Upvc Roof Tiles |
||

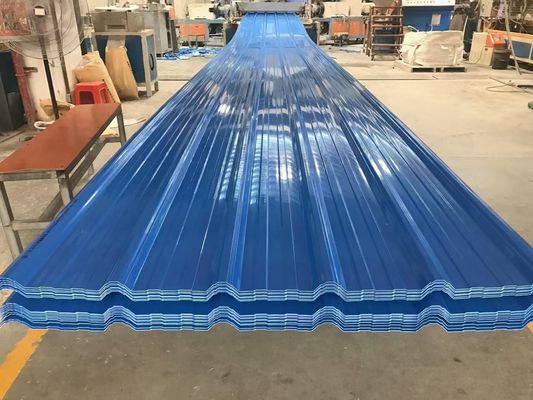

Pvc insulated fire resistance roofing sheets upvc roof material
Pvc inlulated roofing sheets are popular in Mexico and other south America countries. its produced by three-layered techonology that the top layer is for anti-aging, middle layer is for heat insulation, bottom layer is for anti-fricition. It is widely used for factory, warehouse, shopping malls, residential areas, new rural resident construction, awning, steel structures, wood structures, and other hybrid structure slop roof and so on.
Specification:
| Material | PVC ,UPVC,ASA-PVC |
| Width | 920mm,930mm,1070mm,1130mm |
| Thickness | 1.3mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm |
| Length | Max5.8m 20ft; Max11.8m for 40ft |
| Application | house,warehouse,workshop,plant,pavilion |
| Advantages | Anti-Rust,Heat insulation,Soundproof,Fire-proof,Lightweight |
| Quantity | 2.0mm 7200m2/40HQ ; 2.5mm,5800m2/40HQ |
| Color | Customized as your request |
Technical Data
| Heat-Resistance |
(72°c,6h)no deformatio, no viscousness |
High-low temperature change | ±0.11% |
| Cold-Resistance | (-40 °c,6h) no crack in suirface | Fire-protection | Class B1 Retardant Building Materials |
| Bending capability | 25mm | Vicat softening temperature | ≥75°c |
| Flexural load | 800N, no crack | Water absorption rate | ≤0.05% |
| Fleural strength | 72MPa | Nail force | ≥46N |
| Tensile strength | 30MPa | Chemical resistance properties | No reaction : |
The benefits of pvc roof sheets:
