Product Details:
Payment & Shipping Terms:
|
| Material: | Plastic Resin | Surface: | Emboss |
|---|---|---|---|
| Color: | Blue,Grey,Yellow,Brick Red,Purplish Red | Width: | 1050 Mm |
| Length: | Customized By The Times Of 219 Mm | Weight: | 4.5kg Tp 5.8 Kgs |
| Thickness: | 2.3mm ,2.5mm, 2.8mm,3.0mm,5.0mm | Type: | Bent Roof |
| High Light: | plastic roof tiles sheets,lightweight plastic roof tiles |
||
Prefabricated HousesExcellent decay resistance Lightweight Spanish ASA Synthetic Resin Roof Tile
Yiquan endurance resin tile with high weatherability resin and the main body of resin have good corrosion resistance, the performance will not slow owing to the erosion of snow and rain, which can long time to defense the erosion of acid, alkali, salt and other chemical substances, therefore this product are suitable for salt fog corrosion serious areas and high air pollution areas.
The products specification:
| Thickness | 2.5±0.1mm | 2.8±0.1mm | 3.0±0.1mm |
| Length | customized(must be according the times of 219mm) | ||
| Overall width | 720mm | 1050mm | |
| Effective width | 640mm | 960mm | |
| Purlin spacing | 660mm | ||
| Weight | 2.5mm: 5.0±0.1kg/m2 | 2.8mm: 5.6±0.1kg/m2 | 3.0mm: 6.0±0.1kg/m2 |
| Container Load capacity | Thickness | SQ.M./20 FCL (21 Tons) | SQ.M./40 FCL (26 Tons) |
| 2.5mm | 4000 | 5000 | |
| 2.8mm | 3500 | 4300 | |
| 3.0mm | 3300 | 4100 |
|
The products Material:
| 1.The main material ASA is acquired from , one of the Global 500 companies; |
| 2. It's adopted by the most advanced 2 or 3 layer co-extrusion technology for one-time processing;. |
| 3.There Spanish Roof Tiles can withstand strong winds and earthquakes; |
| 4. It’s very suitable for house, villa, tours resort, various types of permanent architectural roof decoration |
Applicaton& Feature:
| Apllication | Features | ||||
| 1.Villa | 1.Color durable more than 20 years . | ||||
| 2.Prefab house | 2.Excelent anti-load capacity that supporting 150 kgs no crack and damage | ||||
| 3.Loft | 3.Excelent corrosion resistance. | ||||
| 4.Gallery | 4.Good heat insulation | ||||
| 5.Gazebo | 5.Water proof and anti high humility. | ||||
| 6.Garden pavilion | 6.Strong fire-retardant>B2 level. | ||||
| 7.Flat-to-sloping renovation | 7.Rapid installation | ||||

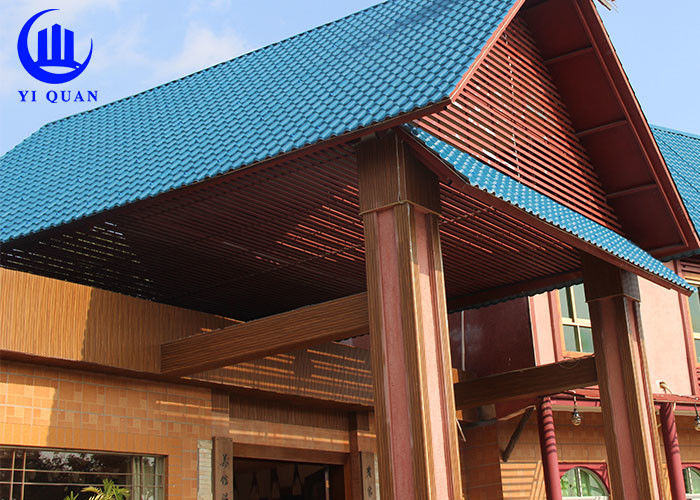

Spanish style ASA synthetic roof tile offers an ideal roofing material solution for the "plain to pitch" reconstruction projects. It's also widely applied in sheds,carports,stadiums,villas,holiday villages,mobile homes,garden pavillion as well as many other types of residential,industrial and commercial buildings.
