Product Details:
Payment & Shipping Terms:
|
| Material: | Pvc | Feature: | Heat Insulation |
|---|---|---|---|
| Width: | 1130 Mm | Length: | 1m,2m,3m,5m Etc |
| Color: | Red ,blue,grey,yellow | Thickness: | 1mm To 3mm |
| Name: | Pvc Roof Tile | ||
| High Light: | pvc roof panels,pvc corrugated sheet |
||

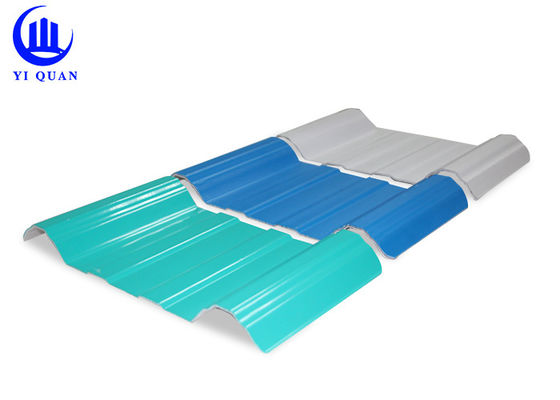

Apvc Plastic Composite Heat Insulation Roof Tile ASA Layer Decorative 2.5 mm Thickness
Products Material:
| First layer: weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance; |
| Second layer: the middle layer is a special foam structure with heat and sound insulation performances. |
| Third layer: the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity. |
Specification:
| Model | YH-3layers PVC | |||
| Thickness | 2.0±0.1mm | 2.5±0.1mm | 3.0±0.1mm | |
| Weight | 3.7±0.1kg/m2 | 4.7±0.1kg/m2 | 5.7±0.1kg/m2 | |
| Length | 5800mm , 11800mm or can be customized | |||
| Overall width | 1130mm | 1130mm | ||
| Effective width | (Wava shape)1000mm | (trapezoidal shape)1060mm | ||
| Purlin spacing | 800~1000mm | |||
| Container Load capacity | Thickness | SQ.M./20 FCL (21 Tons) | SQ.M./20 FCL (26 Tons) | |
| 2.0mm | 5600 m2 | 6900 m2 | ||
| 2.5mm | 4400 m2 | 5500 m2 | ||
| 3.0mm | 3600 m2 | 4500 m2 | ||
Advantage；
Usage:
