Product Details:
Payment & Shipping Terms:
|
| Material: | Pvc | Color: | White,Blue,Sky Blue Or Customized |
|---|---|---|---|
| Weight: | 1.92 Kg/ M2 | Width: | 1130mm,920mm,930mm |
| Length: | Any Length | Product Name: | Pvc Roof Tile |
| High Light: | new wave roofing sheets,pvc corrugated sheet |
||

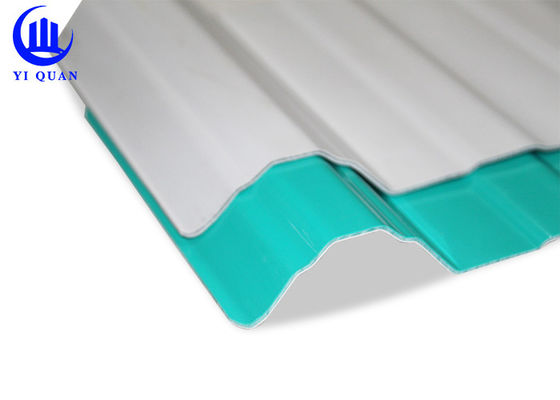

Lightweight PVC corrugated Heat Insulation Roof Tiles Covering Wave Roof Sheet
SPECIFICATION:
| Type | APVC Anti-corrosive Composite Roof Tile | ||||||
| Color | blue, green, white or customized | ||||||
| Total width (mm) | 1120 | ||||||
| Practicality width(mm) | 1060 | ||||||
| Thickness(mm) | 1.5±0.1 | 1.8±0.1 | 2.0±0.1 | 2.5±0.1 | 3.0±0.1 | ||
| Weight(kg/m2) | 2.9±0.1 | 3.4±0.1 | 3.8±0.1 | 4.8±0.1 | 5.7±0.1 | ||
| Length(mm) | 5800 , 11800 or customized (must be fit for the container) | ||||||
| Wave Distance(mm) | 210 | ||||||
| Wave Height(mm) | 26 | ||||||
|
Container Loading capacity |
Thickness(mm) |
SQ.M./20 FCL (22 T) |
SQ.M./40 FCL (26 T) |
||||
| 1.5 | 7500 | 9100 | |||||
| 1.8 | 6200 | 7600 | |||||
| 2.0 | 5600 | 6800 | |||||
| 2.5 | 4500 | 5400 | |||||
| 3.0 | 3700 | 4500 | |||||
Features of Heat Insulation Roof Tile:
| Fire retardant: B1 grade |
| Anti-corrosion: It resists any chemical corrosion |
| Water proof: 100% water proof |
| Impact capacity: resist impact, tensile and hardly breakable. |
| Weather resistant: The UV agent mixing in the corrugated sheet, which can truly resist the damage of ultraviolet ray. The service life of PVC corrugated sheet is especially long. |
| Light weight: The weight is light; it can save the other roofing material |
| Beauty: It has rich and bright colors: |
| Environment friendly: It does not contain asbestos without carcinogen released. |
Application:
| Application: | warehouse |
| workshop | |
| farm markets | |
| steel mills | |
| manufacturing plants | |
| acid and alkali factory roof | |
| food factory roof |
