| Material: | Synthetic Resin | Thickness: | 2.3mm/.5mm/3.0mm |
|---|---|---|---|
| Width: | 1050mm | Spacing Wave: | 160mm |
| Pitch: | 219mm | Height: | 30mm |
| Color: | Gery,purplish Red,brick Red,blue | Product Name: | Synthetic Resin Roof Tile |
| High Light: | plastic roof tiles sheets,lightweight plastic roof tiles |
||

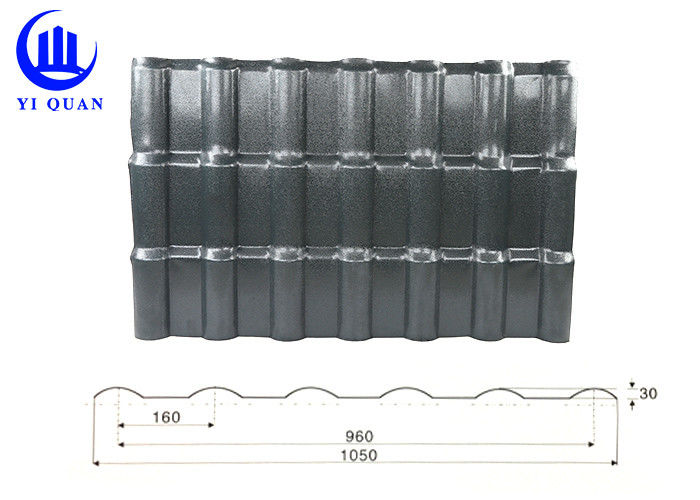

Plastic Spanish Style Roofing Cover ASA Synthetic Resin Roof Tile
Asa synthetic resin roof tiles are made from PVC and ASA. PVC on bottom is anti-corrosion and no leakage. ASA material on surface is anti-aging and makes color stable. The service life time of Chengmei Royal synthetic resin roof tile is 30 years by test. Chengmei Royal synthetic resin roof tile has very good load bearing performance. No damaged when 150kg is evenly loaded with the support distance being 750mm. Chengmei Royal synthetic resin roof tile can be used in high and low temperature climate. And the application temperature ranges from -40 to 72 degrees centigrade.
Specification:
| length | customized(according the pitch of 219mm) | ||||||
| width | overall width 1050 mm effective width 960mm | ||||||
| thickness | 2.3MM | 2.5MM | 3.0MM | ||||
| weight | 5.0±0.1kg/m2 | 5.6±0.1kg/m2 | 6.0±0.1kg/m2 | ||||
Features:
| 1, Long life & No fading | 5, No deformation |
| 2, Acoustic and heat insulation, non flammable | 6, Light weight & Beauty |
| 3, Excellent Anti-corrosiveness character | 7, Self cleaning |
| 4, Waterproof |
8, Easy installation |
FAQ:
| 1. How to install the PVC Roof, Corrugated Roofing Sheet? |
| Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave. |
| 2.What is the temerature limited of the environment that your roof can be used? |
| Temperature range: From Minus 35 degree to 72 degree |
| 3.What color can you produce? |
| White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample. |
| 4.Does you charge for the samples? |
| According to our company policy, we just sent free samples to customers while the customers bear the freight fees. |
| 5. Can you produce according to customers'design? |
| Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould open fees,after certain quantity, the open mould fees will be returned as product. |
