Product Details:
Payment & Shipping Terms:
|
| Thickness: | 1.3mm/1.5mm/1.8mm/2.0mm/2.5mm/3.0mm | Length: | Customized |
|---|---|---|---|
| Width: | 1130mm/930mm/920mm | Color: | Blue/white/yellow/red/green/customize |
| Type: | Corrugated Or Trapezoidal | Material: | PVC |
| Layer: | 1 Layer/ 2 Layre /3 Layer | ||
| High Light: | upvc multilayer roofing sheets,upvc plastic sheet |
||

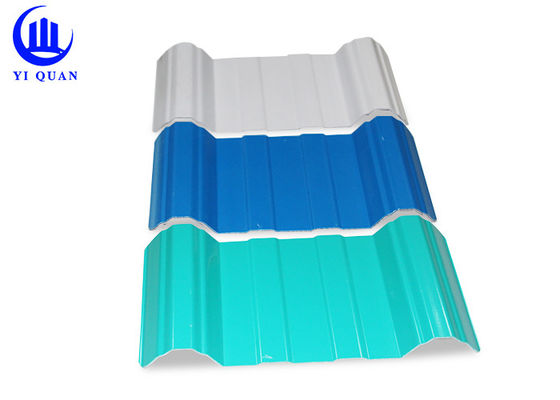

Flame Retardant Upvc Roofing Sheets PVC Anti-corrosive Composite Roof Tile
Specification:
| Product name | PVC anti-corrosive composite roof tile | |||
| Width | 1130mm / 930mm or as clients requirement | |||
| Length | 5800mm or 11800mm for 20ft or 40ft container or as clients requirement | |||
| Thickness | 1.0mm~3.0mm as clients requirement | |||
| Colors | White / Blue / Green / Red / Gray or as clients requirement | |||
| Layer | 1 layer / 2 layers / 3 layers / 4 layers | |||
| Wave profile | Medium circular / Trapezoidal | |||
| Feature | Corrosion resistance / Sound insulation / Weather resistance / Heat insulation / Light weight | |||
| Application | Factory building / Warehouse / Farm's market / Market access / Residential building / Mobile room / Flat-to-sloping roof conversion / Weather sheds / Sun sheds / Car parks | |||
| Very suitable for corrosive chemical fatories. Such as ceramic fatory , soy sause fatory , printing and dyeing fatory , organic solvent fatory and so on | ||||
Test Report:
| Tensile strength | 30Mpa | Chemical resistance properties | Acetic aces 10% | (23℃±2℃,2h. |
| (physical volume ratio) | no permanent abrasion or change | |||
| High-low temerature change | -0.11% | Ether 70% | ||
| (physical volume ratio) | ||||
| Vertical burning | FV--0 | Ethylene-blue 1% | ||
| (weight ratio) | ||||
| Oxygen index | 40% | NaOH 10% | ||
| (weight ratio) | ||||
| Vicat softening temperature | 76℃ | Hypochlorous Natrium 15% | ||
| (weight ratio) | ||||
| Water absorption rate | 0.05% | Saturated NaCL | ||
| Nail force | 46N | Heat-Resistance | (60℃,6h)no deformation, | |
| no viscousness | ||||
| Flexural load | 800N , No crack | Cold-Resistance | (-35℃,6h)no crack | |
| in surface | ||||
| Flexural strength | 72Mpa | |||
We have almost 10 years solid factory experiences,with latest equipment and technology,all our products have passed the evaluation of ISO9001 Quality System Certification.Besides, the Yiquan ASA tile has gained the title of Famous Brand in China. With the high quality and proffessional production rvice team,we are the authorized supplier of roofing tiles for many successful projects in China, Mid East,South America etc..
