Product Details:
Payment & Shipping Terms:
|
| Material: | PVC | Surface: | Asa |
|---|---|---|---|
| Width: | 940 Mm | Effective Width: | 870 Mm |
| Weight: | 4.5 Kgs | Wall Thickness: | Up Layer 1.2 Mm. Buttom Layer 1.1 Mm |
| Whole Thickness: | 10 Mm | Color: | Blue,White,Lake Blue |
| High Light: | pvc hollow sheet,hollow plastic sheet |
||

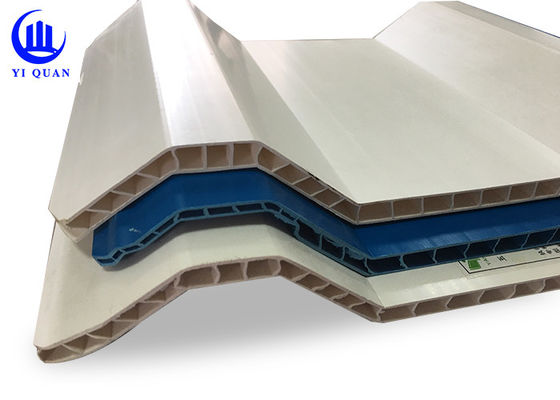

PVC Vinyl Composite Twin Wall Roofing Sheets 10mm Hollow wall panel
Feature:
1, heat resistant
2, fire-proof
3, pressure prevention
4, anti-corrosion
5, water-proofing
6, sound-proof
Technical Data :
| Heat-Resistance |
(72°c,6h)no deformatio, no viscousness |
High-low temperature change | ±0.11% |
| Cold-Resistance | (-40 °c,6h) no crack in suirface | Fire-protection | Class B1 Retardant Building Materials |
| Bending capability | 25mm | Vicat softening temperature | ≥75°c |
| Flexural load | 800N, no crack | Water absorption rate | ≤0.05% |
| Fleural strength | 72MPa | Nail force | ≥46N |
| Tensile strength | 30MPa | Chemical resistance properties | No reaction : |
Application:
| The twin wall PVC panels was widely used in the roofs, walls and ceiling decoration, | |
| not only a roof but also the insulation. widely used for animal shelter,chemical factory roof ,food manufacturer roof . warehouse roof ,farm plant |
