1080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee

China Foshan Yiquan Plastic Building Material Co.Ltd certification
China Foshan Yiquan Plastic Building Material Co.Ltd certification
Very good purchanse experience with Yiquan Pvc Roof for all the shipments since last year . Good quality , Competitive price and the nice service . Thank you very much for the good supplies Bruce

—— Bluce

I'm Online Chat Now

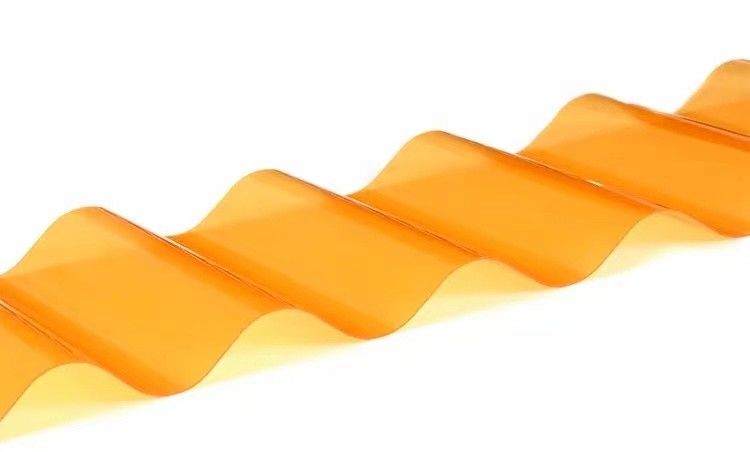

1080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee

1080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee
1080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee

Large Image :  1080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee

Product Details:

Place of Origin: China
Brand Name: Yiquan
Certification: Iso9001
Model Number: pc-930

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: Negotiation
Packaging Details: Nude
Delivery Time: Within 7 days after the payment received
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000 meter per day
Detailed Product Description
Material: Polycarbonate Width: 920mm 930mm 825mm 1120mm 1080mm 1100 Mm 1130mm
Color: Grass Green,Lake Blue ,Yellow, Black,Clear Weight: 1.2kg/m
Length: Customized Name: Corrugated Polycarbonate Roof Sheet
Application: Hotel, Villa, Mall, Sports Venues, Leisure Facilities,....
High Light:

Polycarbonate Corrugated Roof Tiles

,

1080mm Width Corrugated Roof Tiles



100% new Polycarbonate corrugated roofing sheet



Polycarbonate Corrugated Sheet

Thickness 0.6-3.5mm
Width maximum width 1.1m
Length according to requirements
Material 100% virgin Bayer
Color Clear,Greengrass, Blue ,Brown ,Opal etc.
Coating 50 micron UV protection(One side or two sides).
Guarantee 10 years.
Sound Insulation Good sound insulation performance. The noisescan be effectively reduced. It is the preferred material selection forexpressway noises barrier.
Temperature Resistance Between -40℃ & 120℃ getdeformed and will not appear any obvious quality degradation in mechanicalproperties.
Remarks Other color or special size can be custom made.



Techonical data:





Property Units - SI Value
Density g/cm3 1.2
Water Absorption % 0.15
Tensile strength at yield MPa 62
Tensile strength at break MPa 65
Elongation at yield % 6
Elongation at break % >70
Tensile Modulus of Elasticity MPa 2300
Flexural Modulus MPa 1890
Flexural Strength at Yield MPa 93
Notched Impact Strength Izod J/m 800
Notched Impact Strength Charpy J/m 800
Impact Falling Weight J 50
Rockwell Hardness R scale 118



Features

1) Light transmitance rate: up to 12%-88%, according to different colors

2) Ultraviolet ray filter rate: 99%,with ultraviolet-resistant co-extruded film on the surface

3) Impact strength: 250--280 times of the ordinary glass; 2 times of toughened glass; 20--30 times of PMMA sheet

4) Fire retardance: Grade B2, according to national GB8625-88 test

5) Sound insulation: can effectively resist the noise spread

6) Temperature resistance: not deform from -40 degrees Celsius to +120 degrees Celsius

7) Light weight: with density of 1.20g/cm³, easy to handle and drill; convenient for construction and procession





Applications

1) For resisting winds, rains, and gathering lights of all kinds of buildings, roofs, corridors, curtains, eaves of court yards.
2) For various advertising billboards, telephone stalls or ATM stalls.
3) For decoration of gardens, recreation rooms, or other public places.
4) For front shields or instruments and meter plants of cars, blats, planes, machines and police shields.
5) For sound-insulation walls of roads and bridges.
6) For raising sheds of crops, fruits and vegetables, animals and poultry,etc..



1080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee 01080mm Width Polycarbonate Corrugated Roof Tiles 10 Years Guarantee 1
