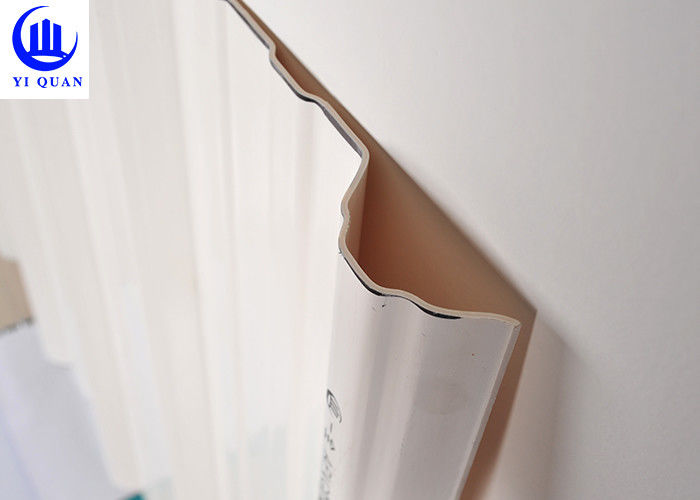

Antiacid Protection Heat Insulation Roof Tiles Plastic Waterproof Pvc Roof Panels

Antiacid Protection Heat Insulation Roof Tiles Plastic Waterproof Pvc Roof Panels
Antiacid Protection Heat Insulation Roof Tiles Plastic Waterproof Pvc Roof Panels Antiacid Protection Heat Insulation Roof Tiles Plastic Waterproof Pvc Roof Panels

Large Image :  Antiacid Protection Heat Insulation Roof Tiles Plastic Waterproof Pvc Roof Panels

Product Details:

Place of Origin: China
Brand Name: Yiquan
Certification: ISO9001
Model Number: Y1130-063

Payment & Shipping Terms:

Minimum Order Quantity: 1000SQM
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: Order of one container 7 days after deposit
Payment Terms: L/C, D/P, T/T
Supply Ability: 8000 Square Meter/Square Meters per Day
Detailed Product Description
Type: Main Tile Material: PVC Resin/apvc
Thickness: 2.0MM/2.5MM/3.0MM Length: Customized
Width: 1130mm/930mm/920mm Color: White/blue/green/gery/red
High Light:

new wave roofing sheets

,

pvc corrugated sheet

Antiacid Protection Roof Sheet Heat Insulation Roof Tile Plastic Waterproof PVC Roof





Specification:



Model Name T - 1130 - APVC
Total Width 1130 MM
Effective Width 1050 MM
Length Any Length As Required
Wave Height 25 MM
Wave Width 210 MM
Thickness 2.0 MM / 2.5 MM / 3.0 MM
Structure 3 Layers Solid
Color White / Blue / Green / Light Grey / Terracotta





Featuer:



1. B1 Grade Fire Resistance

2. Excellent Heat Insulation ( Up to 10 degrees )

3. Great Sound Insulation ( Up to 40 Dbs )

4. Good Corrosion Resistance

5. Fast and Easy Installation , Maintainance and Cleaning

6. Eco-Friendly

7. Strength




Heat Insulation Roof Tile:



The Heat Insulation Roof Tile produced by three lagers ectrusion technology and every has the different

function.



Surface layer is resins for good anti corrosion and the life durability.



Middle layer is the adjusted pvc material which to make the body strong.



Bottom layer is combined 3 layers funtions to make the impressive space.





Packing List :



Thickness Kgs / M² M² / 20 " FCL ( 21 T ) M² / 40 " FCL ( 26 T )
2.0 MM 3.75 Kgs / M² 5600 Square Meters 6800 Square Meters
2.5 MM 4.80 Kgs / M² 4375 Square Meters 5400 Square Meters
3.0 MM 5.50 Kgs / M² 3800 Square Meters 4700 Square Meters
