Product Details:
Payment & Shipping Terms:
|
| Material: | PVC | Product Name: | Pvc Roof Tile |
|---|---|---|---|
| Apllication: | Cattle Farm ,Food Workshop,Factory Roof | Wave Type: | Corrugated |
| Color: | Red,grass Green,lake Blue,yellow ,grey | Width: | 1130 Mm |
| Length: | Customized | Weight: | 1.92 Kg To 5.8 Kgs Per M2 |
| High Light: | pvc roofing sheets,coloured corrugated plastic roofing sheets |
||

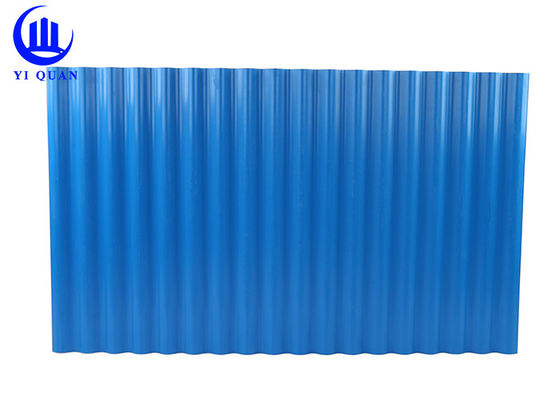

Good Heat Insulation Pvc Roof Tiles For Chicken Farm Cow Farm Roof Top
Specification:
| Product name | PVC Roof Tiles | ||||
| Model | 1130 mm | ||||
| Length | 5800mm , 11800mm or customized | ||||
| Type | Round wave type , Trapezoidal type | ||||
| Overall width | 1130mm | ||||
| Effective width | 1000mm(round wave type) , 1050mm(trapezoidal type) | ||||
| Purlin spacing | 660 mm | ||||
| Surface | Smooth surface | ||||
| Layers | 2 layers | ||||
| Thickness | 1.5±0.1mm | 1.8±0.1mm | 2.0±0.1mm | 2.5±0.1mm | |
| Weight | 2.8±0.1kg/m2 | 3.4±0.1kg/m2 | 3.8±0.1kg/m2 | 4.8±0.1kg/m2 | |
| Container Load capacity | SQ.M./20 FCL (21 Tons) | 7200 m2 | 6100 m2 | 5500 m2 | 4300 m2 |
| SQ.M./40 FCL (26 Tons) | 9000 m2 | 7600 m2 | 6800 m2 | 5400 m2 | |
Feature:
Contact Person: Ms. Elaine Guo
Tel: + 86 13702960105
Fax: 86-757-82585161
