ASA Synthetic Resin Roof Tile 2.5mm 1050mm Width ISO Certified

Large Image : ASA Synthetic Resin Roof Tile 2.5mm 1050mm Width ISO Certified

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yiquan
Model Number:	Y1

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	$2.80-4.80

Contact Now

Detailed Product Description

Type:	Undaform	Color:	White/Bule/Green/Yellow/Red/or Crrugate
Thickness:	2.3mm/2.5mm/3.0mm	Width:	1050mm
Effective Width:	960mm	Length:	Customized(according The Pitch Of 219mm)
Weight:	5.0±0.1kg/m2 \| 5.6±0.1kg/m2 \| 6.0±0.1kg/m2	Container Load Capacity:	4000 M2 \| 3500 M2 \| 3300 M2 (20 FCL, 21TONS); 5000 M2 \| 4300 M2 \| 4100 M2 (40 FCL, 26TONS)
Heat Distortion Temperature:	Under 70.0°C	Vicat Softening Temperature:	Under 75.2°C
Oxygen Index:	35	Density:	1.75-1.95
Impact Resistance:	No Crack	Corrosion-resistant:	Acid (HCL,H2SO4,HNO3)5% And Alkaline(NaOH)5%
Purlin Spacing:	660mm
Highlight:	ASA synthetic resin roof tile 2.5mm , ISO certified resin roof tile , 1050mm width synthetic roof tile

ASA Synthetic Resin Roof Tile

Product Overview

High-quality synthetic resin roof tiles available in multiple colors and thicknesses, suitable for hospitals, workshops, and other commercial applications.

Key Specifications

Attribute	Value
Warranty	More than 5 years
After-sale Service	Online technical support
Application	Hospital, Workshops
Type	Undaform
Color Options	White, Blue, Green, Yellow, Red, or Crrugate
Thickness	2.3mm, 2.5mm, 3.0mm

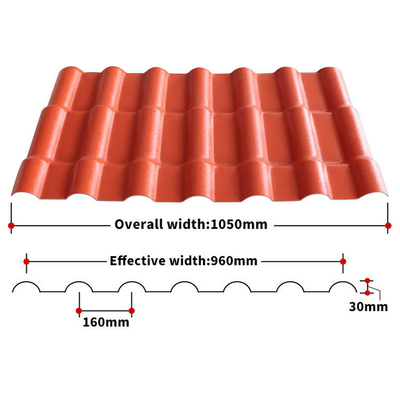

Width	1050mm (Effective width: 960mm)
Certificate	ISO

Product Images

Detailed Specifications

Length: Customized (according to pitch of 219mm)
Thickness Options: 2.5±0.1mm, 2.8±0.1mm, 3.0±0.1mm
Weight: 5.0±0.1kg/m², 5.6±0.1kg/m², 6.0±0.1kg/m²
Container Capacity:
- 20' FCL (21TONS): 4000 M², 3500 M², 3300 M²
- 40' FCL (26TONS): 5000 M², 4300 M², 4100 M²

Quality Test Results

Test Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos, Environment friendly Recycling material	GB6566-2001
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index:35	GB/T2406-1993
Impact Resistance	No crack	0/10	GB/T8814-2004
Corrosion-resistant (Acid)	HCL, H2SO4, HNO3 (5%)	No change	QB/T3801-1999
Corrosion-resistant (Alkaline)	NaOH (5%)	No change	QB/T3801-1999

Accessories

Main Tile: Installed on purlin (size 600mm to 900mm)
Tee Tile: For three sides slope border
Four-ways Tile: For all around border of slope
Tilted Ridge Tile: Covering two sides of main tiles
Main Ridge Tile: Installed on two main borders

Installation Process

Purlin can be square tube (60*40*3mm), C-type steel (100*50*20*3mm), or anticorrosive wood square (60*40mm)
Purlin spacing 660mm, installed bottom-up
Main tile should be installed in reverse direction according to local wind direction
Transverse overlap of a tile wave and longitudinal overlap of at least a pitch
Lower part of overlap mount should be supported by a purlin
Use 6.3mm diameter tapping screws (pre-drill holes 2mm bigger than screw diameter)
