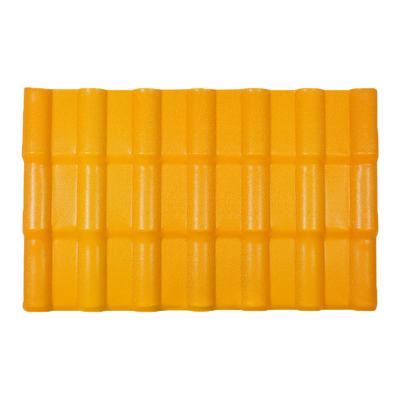

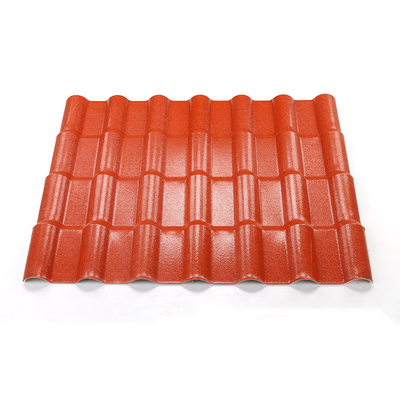

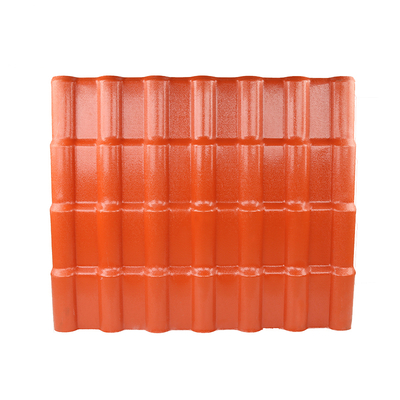

ASA Synthetic Resin Roof Tile 2.5-3.0MM Fireproof Corrugated

Available Colors: Purplish Red, Brick Red, Gray, Blue, Gold

• Length: Customized (according to the pitch of 219mm)
• Width: Overall width 1050mm, Effective width 960mm
• Thickness Options: 2.5±0.1mm | 2.8±0.1mm | 3.0±0.1mm
• Weight: 5.0±0.1kg/m² | 5.6±0.1kg/m² | 6.0±0.1kg/m²
• Container Load Capacity:
  • 20 FCL (21TONS): 4000 M² | 3500 M² | 3300 M²
  • 40 FCL (26TONS): 5000 M² | 4300 M² | 4100 M²

• The Purlin can choose square tube (60*40*3mm) or C-type steel (100*50*20*3mm) or anticorrosive wood square (60*40mm)

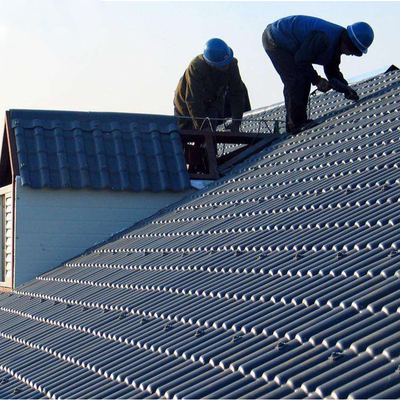

• Purlin spacing 660mm, installed bottom-up
• The main tile should be installed in reverse direction according to local wind direction
• Transverse overlap of a tile wave and longitudinal overlap of at least a pitch
• The lower part of the overlap mount should be supported by a purlin
• While installing the main ridge tile, installation should be carried out after a section of the first ridge tile is truncated
• Main ridge tile and tilted ridge tile should be sawed to level state at the overlap location
• The Tee is installed after installing the main ridge tile and tilted ridge tile
• The slope angle should be considered while installing the ridge tile
• Pre-drilling should be carried out before fixing, the bore should be 2mm bigger than the screw diameter
• Suggested to use 6.3mm diameter tapping screw
